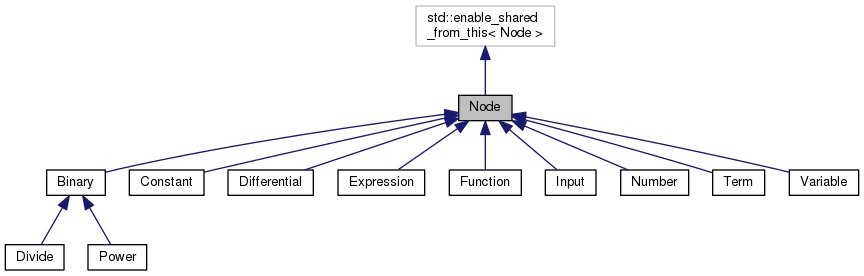

Inheritance diagram for Node:

[legend]

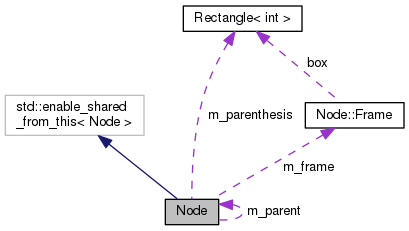

Collaboration diagram for Node:

Classes
struct	Frame

Public Types
enum	Select { NONE, START, END, ALL }

Public Member Functions
void	calculateSize (UI::Graphics &gc)

void	out (XML::Stream &xml)

void	calculateOrigin (UI::Graphics &gc, int x, int y)

void	setUpDraw (UI::Graphics &gc)

void	draw (UI::Graphics &gc) const

void	setSelect (Select s)

Select	getSelect () const

void	setDrawParenthesis (bool fDrawPar)

bool	getDrawParenthesis () const

const Frame &	getFrame () const

Node *	first ()

Node *	last ()

Node *	getNextLeft ()

Node *	getNextRight ()

void	setParent (Node *parent)

Node *	getParent () const

int	getDepth () const

int	getNth () const

void	addNth (int n)

void	multNth (int n)

void	setNth (int n)

void	negative ()

bool	getSign () const

Complex	getValue () const

std::shared_ptr< Node >	getSharedPtr ()

Constructors and Virtual Destructor
	Node (Node *parent=nullptr, bool fNeg=false, Select s=NONE)

	Node (EqnXMLParser &in, Node *parent)

virtual	~Node ()
	Abstract base class needs virtual desctructor.

Virtual Public Member Functions
virtual std::string	toString () const =0

virtual bool	isLeaf () const

virtual bool	isFactor () const

virtual Node *	findNode (int x, int y)

virtual Node *	findNode (const Box &b)

virtual int	numFactors () const

virtual void	normalize ()

virtual bool	simplify ()

virtual bool	less (NodePtr b) const

virtual const std::string &	getName () const =0

virtual std::type_index	getType () const =0

Static Public Member Functions
static bool	createNodeByName (std::string name, Equation &eqn)

Static Public Attributes
static const std::vector< std::string >	select_tags = { "NONE", "START", "END", "ALL" }

Private Member Functions
int	getDepth (int depth) const

Virtual Private Member Functions
virtual Node *	downLeft ()

virtual Node *	downRight ()

virtual Node *	getLeftSibling (Node *)

virtual Node *	getRightSibling (Node *)

virtual Frame	calcSize (UI::Graphics &gc)=0

virtual void	calcOrig (UI::Graphics &gc, int x, int y)=0

virtual void	drawNode (UI::Graphics &gc) const =0

virtual Complex	getNodeValue () const =0

virtual void	xml_out (XML::Stream &xml) const =0

Private Attributes
Node *	m_parent
	Parent node of this node. Can be null if root.

bool	m_sign
	True if positve.

Select	m_select
	Select state of this node.

Frame	m_frame
	Frame of this node includes enclosing rect and vertical offset.

Box	m_parenthesis
	Rectangle that contains paranthesis of this node.

int	m_nth = 1
	Integer power of ths node.

bool	m_fDrawParenthesis = false
	If true, draw paranthesis around this node.

Detailed Description

Abstract base class for symbolic classes that make up an equation. Any class that will be part of the equation tree structor derives from this class.

Member Enumeration Documentation

enum Node::Select

Possible selection states for a node:

NONE - not selected

START - node starts selection

END - node ends selection

ALL- just this node selected

Constructor & Destructor Documentation

Node::Node	(	Node *	parent = `nullptr`,
		bool	fNeg = `false`,
		Select	s = `NONE`
	)

inline

Constructor for Node class. Directly initialize the Node class private data members.

Parameters

parent	Node object that is parent of this node. If NULL, this node is root.
fNeg	True, if node is negated.
s	Node selection state.

Node::Node	(	EqnXMLParser &	in,
		Node *	parent
	)

XML constructor for Node class. Initialize the constructor from XML input stream.

Parameters

in	XML input stream.
parent	Parent node object.

Member Function Documentation

void Node::addNth ( int n )

inline

Add integer n to power value of this node.

Parameters

n	Integet power to be added.

virtual void Node::calcOrig	(	UI::Graphics &	gc,
		int	x,
		int	y
	)

privatepure virtual

Calculate origin of the nodes in the subtree relative to point x,y.

Parameters

gc	Graphics context.
x	Horizontal origin.
y	Vertical origin.

Implemented in Input, Differential, Function, Expression, Number, Term, Variable, Constant, Power, and Divide.

virtual Frame Node::calcSize ( UI::Graphics & gc )

privatepure virtual

Calculate frame of this node's subtree in graphics context. Frame includes size and vertical offset.

Parameters

gc	Graphics context.

Returns: Return frame of this subtree.

Implemented in Input, Differential, Function, Expression, Number, Term, Variable, Constant, Power, and Divide.

void Node::calculateOrigin	(	UI::Graphics &	gc,
		int	x,
		int	y
	)

Calculate origin of each node in subtree. The size of each node in subtree needs to be precalculated.

Parameters

gc	Graphics context to calculate origin.
x	Horizontal origin of root node in subtree.
y	Vertical origin of root node in subtree.

void Node::calculateSize ( UI::Graphics & gc )

Calculate size of node subtree in given graphics context.

Parameters

gc	Graphics context used to calculate size.

bool Node::createNodeByName	(	std::string	name,
		Equation &	eqn
	)

static

Create node by its name in the given equation

Parameters

name	Name of node to be created.
eqn	Equation that has current input to take node

Returns: True, if node was created

virtual Node* Node::downLeft ( )

inlineprivatevirtual

Get left most node of this node's subtree. Default function returns NULL assuming it is leaf node.

Returns: Left most node of this node's subtree.

Reimplemented in Differential, Function, Expression, Term, and Binary.

virtual Node* Node::downRight ( )

inlineprivatevirtual

Get right most node of this node's subtree. Default function returns NULL assuming it is leaf node.

Returns: Righ most node of this node's subtree.

Reimplemented in Differential, Function, Expression, Term, and Binary.

void Node::draw ( UI::Graphics & gc ) const

Draw equation subtree whose root is this node.

Parameters

gc	Graphics context class object.

virtual void Node::drawNode ( UI::Graphics & gc ) const

privatepure virtual

Draw subtree in this graphics context.

Parameters

gc	Graphics context.

Implemented in Input, Differential, Function, Expression, Number, Term, Variable, Constant, Power, and Divide.

Node * Node::findNode	(	int	x,
		int	y
	)

virtual

Virtual recursive function to return deepest node at point (x,y). Leaf nodes will return true or false depending on whether (x,y) is inside their box. Non-leaf nodes will query their children.

Parameters

x	horizontal coordinate.
y	vertical coordinate.

Returns: Deepest node at point (x,y).

Reimplemented in Differential, Function, Expression, Term, and Binary.

Node * Node::findNode ( const Box & b )

virtual

Virtual recursive function to return first node from a top to bottom search whose frame is inside Box b.

Parameters

b	Bounding box.

Returns: Top node inside bounding box.

Reimplemented in Differential, Function, Expression, Term, and Binary.

Node * Node::first ( )

Get left most node of this node's subtree.

Returns: Left mode node.

int Node::getDepth ( ) const

inline

Get depth from root of this node. 0 is root.

Returns: Depth of this node.

int Node::getDepth ( int depth ) const

inlineprivate

Recursively calculate the depth of this node.

Parameters

depth Current calculated depth.

Returns: Return depth of this node.

bool Node::getDrawParenthesis ( ) const

inline

Get draw parenthesis flag of this node.

Returns: Draw parenthesis flag value.

const Frame& Node::getFrame ( ) const

inline

Get frame of this node.

Returns: Frame of this node.

virtual Node* Node::getLeftSibling ( Node * )

inlineprivatevirtual

Get left sibiling of node argument. Default function returns NULL assuming this is a leaf node.

Returns: Left sibling node.

Reimplemented in Expression, Term, and Binary.

virtual const std::string& Node::getName ( ) const

pure virtual

Get final class name of node class object.

Returns: Class name of node object.

Implemented in Input, Differential, Function, Expression, Number, Variable, Term, Constant, Power, and Divide.

Node * Node::getNextLeft ( )

Get next left node, going up if necessary.

Returns: Next left node.

Node * Node::getNextRight ( )

Get next right node, going up if necessary.

Returns: Next right node.

virtual Complex Node::getNodeValue ( ) const

privatepure virtual

Get value of this node's subtree.

Returns: Subtree value.

Implemented in Input, Differential, Function, Expression, Number, Term, Variable, Constant, Power, and Divide.

int Node::getNth ( ) const

inline

Get value of integer power of this node.

Returns: Value of m_nth.

Node* Node::getParent ( ) const

inline

Get parent of this node.

Returns: Parent node.

virtual Node* Node::getRightSibling ( Node * )

inlineprivatevirtual

Get right sibiling of node argument. Default function returns NULL assuming this is a leaf node.

Returns: Right sibling node.

Reimplemented in Expression, Term, and Binary.

Select Node::getSelect ( ) const

inline

Get selection state of this node.

Returns: Selection state of this node.

std::shared_ptr<Node> Node::getSharedPtr ( )

inline

Return shared_ptr for this Node object. If none exists, create one.

Returns: Shared pointer for this Node object

bool Node::getSign ( ) const

inline

Get sign of this node.

Returns: True if positive.

virtual std::type_index Node::getType ( ) const

pure virtual

Get final class type of node class object.

Returns: Class type of node object.

Implemented in Input, Differential, Function, Expression, Number, Variable, Term, Constant, Power, and Divide.

Complex Node::getValue ( ) const

Calculate value of this node and it subtree.

Returns: Calculated value of this node's subtree.

virtual bool Node::isFactor ( ) const

inlinevirtual

Virtual function to query whether this node is a factor. Default function returns true. Only class Term returns false.

Returns: True if a factor.

Reimplemented in Term.

virtual bool Node::isLeaf ( ) const

inlinevirtual

Virtual function to query whether this is a leaf node or subtree. Default function returns true. Override to return false.

Returns: True if there are no child nodes.

Reimplemented in Differential, Function, Expression, Term, and Binary.

Node * Node::last ( )

Get right most node of this node's subtree.

Returns: Right mode node.

virtual bool Node::less ( NodePtr b ) const

inlinevirtual

Compare this node string representation to the given node's string representation. Default function works for most nodes but some are overridden.

Parameters

b	Node to compare. @

Returns: True if this node is less than given node.

Reimplemented in Function.

void Node::multNth ( int n )

inline

Multiply integer n to power value of this node.

Parameters

n	Integer power to be multiplied.

void Node::negative ( )

inline

Negate this node.

virtual void Node::normalize ( )

inlinevirtual

Put node's subtree to a standard algebraic form.

Reimplemented in Differential, Function, Expression, Term, Power, and Divide.

virtual int Node::numFactors ( ) const

inlinevirtual

Virtual function that queries node of number of factor in its subtree. Default function returns 1 which is correct for leaf node. Non-leaf node queries its children.

Returns: Number of factors in node's subtree.

Reimplemented in Input, Differential, Function, Expression, Term, and Binary.

void Node::out ( XML::Stream & xml )

Serialize this node and child nodes to XML output stream.

Parameters

xml	XML ouput stream.

void Node::setDrawParenthesis ( bool fDrawPar )

inline

Set draw parenthesis flag of this node.

Parameters

fDrawPar If true, draw a parenthesises around node.

void Node::setNth ( int n )

inline

Set integer power value of this node.

Parameters

n	Integer power to be set.

void Node::setParent ( Node * parent )

inline

Set parent of this node.

void Node::setSelect ( Select s )

inline

Set selection state of this node.

Parameters

s	New selection state of node.

void Node::setUpDraw ( UI::Graphics & gc )

Calculate the size and origin of the subtree of this node.

Parameters

gc	Graphics context class object.

virtual bool Node::simplify ( )

inlinevirtual

Simplify node's subtree algebraiclly.

Returns: True if node's subtree was changed.

Reimplemented in Differential, Expression, Number, Term, Power, and Divide.

virtual std::string Node::toString ( ) const

pure virtual

Recursive virtual function to represent this subtree as string.

Returns: String representing this node and child nodes.

Implemented in Input, Differential, Function, Expression, Number, Variable, Term, Constant, and Binary.

virtual void Node::xml_out ( XML::Stream & xml ) const

privatepure virtual

Stream subtree to XML stream.

Parameters

xml	XML stream.

Implemented in Input, Differential, Function, Expression, Number, Term, Variable, Constant, and Binary.

Member Data Documentation

const vector< string > Node::select_tags = { "NONE", "START", "END", "ALL" }

static

List of strings corresponding to enum Select. Use enum State as index into select_tags to get its strings.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
