#include <nodes.h>

Inheritance diagram for Function:

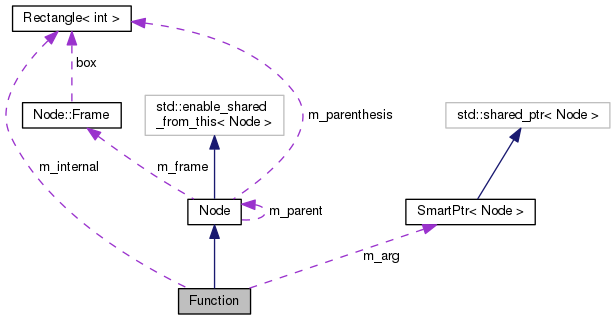

Collaboration diagram for Function:

[legend]

Public Types
using	func_ptr = Complex(*)(Complex)

using	func_map = std::unordered_map< std::string, func_ptr >
	Map that associates function name with its function call.

Public Types inherited from Node
enum	Select { NONE, START, END, ALL }

Public Member Functions
Virtual Public Member Functions
std::string	toString () const

bool	isLeaf () const

Node *	findNode (int x, int y)

Node *	findNode (const Box &b)

int	numFactors () const

void	normalize ()

bool	less (NodePtr b) const

const std::string &	getName () const

std::type_index	getType () const

Constructor and Virtual Destructor
	Function (const std::string &name, func_ptr fp, Parser &p, Node *parent, bool neg=false, Node::Select s=Node::Select::NONE)

	Function (EqnXMLParser &in, Node *parent)

	~Function ()

Public Member Functions inherited from Node
void	calculateSize (UI::Graphics &gc)

void	out (XML::Stream &xml)

void	calculateOrigin (UI::Graphics &gc, int x, int y)

void	setUpDraw (UI::Graphics &gc)

void	draw (UI::Graphics &gc) const

void	setSelect (Select s)

Select	getSelect () const

void	setDrawParenthesis (bool fDrawPar)

bool	getDrawParenthesis () const

const Frame &	getFrame () const

Node *	first ()

Node *	last ()

Node *	getNextLeft ()

Node *	getNextRight ()

void	setParent (Node *parent)

Node *	getParent () const

int	getDepth () const

int	getNth () const

void	addNth (int n)

void	multNth (int n)

void	setNth (int n)

void	negative ()

bool	getSign () const

Complex	getValue () const

std::shared_ptr< Node >	getSharedPtr ()

	Node (Node *parent=nullptr, bool fNeg=false, Select s=NONE)

	Node (EqnXMLParser &in, Node *parent)

virtual	~Node ()
	Abstract base class needs virtual desctructor.

virtual bool	isFactor () const

virtual bool	simplify ()

Static Public Member Functions
static Function *	parse (Parser &p, Node *parent)

Static Public Member Functions inherited from Node
static bool	createNodeByName (std::string name, Equation &eqn)

Static Public Attributes
static const std::string	name = "function"
	Name of Function class.

static const std::type_index	type = typeid(Function)
	Type of Function type.

Static Public Attributes inherited from Node
static const std::vector< std::string >	select_tags = { "NONE", "START", "END", "ALL" }

Private Member Functions
Virtual Private Member Functions
Node *	downLeft ()

Node *	downRight ()

void	xml_out (XML::Stream &xml) const

Frame	calcSize (UI::Graphics &gc)

void	calcOrig (UI::Graphics &gc, int x, int y)

void	drawNode (UI::Graphics &gc) const

Complex	getNodeValue () const

Static Private Member Functions
static Complex	sinZ (Complex z)
	Function for sin.

static Complex	cosZ (Complex z)
	Function for cos.

static Complex	tanZ (Complex z)
	Function for tan.

static Complex	logZ (Complex z)
	Function for log.

static Complex	expZ (Complex z)
	Function for exp.

Private Attributes
std::string	m_name
	Name of function.

func_ptr	m_func
	Function pointer to evaluate function.

NodePtr	m_arg
	Function own this tree.

Box	m_internal
	Bounding box of this node.

Static Private Attributes
static const func_map	functions

Detailed Description

Represents a function by containing an expression passed to a mathematical function.

Member Typedef Documentation

using Function::func_ptr = Complex (*)(Complex)

Function pointer that takes a single complex argument and returns a complex value.

Constructor & Destructor Documentation

Function::Function	(	const std::string &	name,
		func_ptr	fp,
		Parser &	p,
		Node *	parent,
		bool	neg = `false`,
		Node::Select	s = `Node::Select::NONE`
	)

inline

Constructor for Function class.

Parameters

name	Name of function.
fp	Pointer to function to evaluate arguments.
p	Parser object.
parent	Parent node.
neg	If true, node is negative.
s	Selection state of node.

Function::Function	(	EqnXMLParser &	in,
		Node *	parent
	)

XML constructor for Function class. Read in XML for Function class.

Parameters

in	XML input stream.
parent	Parent node object.

Function::~Function ( )

inline

Abstract base class needs virtual destructor.

Member Function Documentation

void Function::calcOrig	(	UI::Graphics &	gc,
		int	x,
		int	y
	)

privatevirtual

Calculate origin of this node offset from the point (x,y) given it.

Parameters

gc	Graphics context.
x	Horizontal origin.
y	Vertical origin.

Implements Node.

Node::Frame Function::calcSize ( UI::Graphics & gc )

privatevirtual

Calculate size of this node in given graphics context.

Parameters

gc	Graphics context.

Returns: Return frame containing size of this node.

Implements Node.

Node* Function::downLeft ( )

inlineprivatevirtual

Get left node. For Function class left most node of argument.

Returns: Left node.

Reimplemented from Node.

Node* Function::downRight ( )

inlineprivatevirtual

Get right node. For Function class right most node of argument.

Returns: Right node.

Reimplemented from Node.

void Function::drawNode ( UI::Graphics & gc ) const

privatevirtual

Draw this node in the given graphical context.

Parameters

gc	Graphical context.

Implements Node.

Node * Function::findNode	(	int	x,
		int	y
	)

virtual

Rescursive search to find deepest node at point (x,y).

Parameters

x	horizontal coordinate.
y	vertical coordinate.

Returns: Deepest node at point (x,y).

Reimplemented from Node.

Node * Function::findNode ( const Box & b )

virtual

Recursive function to return first node from a top to bottom search whose frame is inside Box b.

Parameters

b	Bounding box.

Returns: Top node inside bounding box.

Reimplemented from Node.

const std::string& Function::getName ( ) const

inlinevirtual

Get name of this class.

Returns: Name of this class.

Implements Node.

Complex Function::getNodeValue ( ) const

privatevirtual

Get value of this subtree.

Returns: Complex value of this subtree.

Implements Node.

std::type_index Function::getType ( ) const

inlinevirtual

Get name of this class.

Returns: Name of this class.

Implements Node.

bool Function::isLeaf ( ) const

inlinevirtual

Override for isLeaf virtual function.

Returns: False, this node has child nodes.

Reimplemented from Node.

bool Function::less ( NodePtr b ) const

virtual

Function class specialization of default virtural member function. Sort functions in reverse alphabetical order.

Parameters

b	Reference node.

Returns: True, if b is less than this node.

Reimplemented from Node.

void Function::normalize ( )

inlinevirtual

Refactor subtree to a standard form. For Function class, normalize argument.

Reimplemented from Node.

int Function::numFactors ( ) const

inlinevirtual

Get number of factors in this node.

Returns: Number of factors of argument plus this node.

Reimplemented from Node.

Function * Function::parse	(	Parser &	p,
		Node *	parent
	)

static

Get function object from Parser.

Parameters

p	Parser object.
parent	Parent for new Function object.

Returns: Function object or null if no function found in parser.

std::string Function::toString ( ) const

inlinevirtual

Get representation of Function as string. String representation is function_name(argument).

Returns: String representation of Function.

Implements Node.

void Function::xml_out ( XML::Stream & xml ) const

privatevirtual

Output XML of this node.

Parameters

xml	XML output stream.

Implements Node.

Member Data Documentation

const Function::func_map Function::functions

staticprivate

Initial value:

= {
    { "sin", &sinZ },
    { "cos", &cosZ },
    { "tan", &tanZ },
    { "log", &logZ },
    { "exp", &expZ }
}

Association of function names with their function pointers.

The documentation for this class was generated from the following files:
