#include <milo.h>

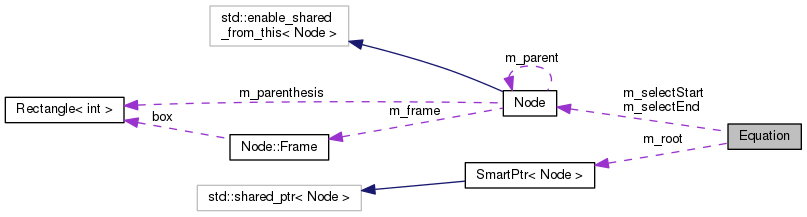

Collaboration diagram for Equation:

[legend]

Public Member Functions
std::string	toString () const

void	xml_out (std::ostream &os) const

void	xml_out (std::string &str) const

void	draw (UI::Graphics &gc, bool fRefresh=false)

Equation *	clone ()

bool	blink ()

void	getCursorOrig (int &x, int &y)

void	setCurrentInput (int in_sn)

void	addInput (Input *in)

void	removeInput (Input *in)

Input *	getCurrentInput ()

void	nextInput (bool fShift)

FactorIterator	disableCurrentInput ()

void	setSelectStart (Node *start)

void	setSelectEnd (Node *end)

void	clearSelect ()
	Clear current selection.

void	setSelect (Node start, Node end=nullptr)

void	selectNodeOrInput (Node *node)

void	setSelectFromNode (Node *node)

Node *	findNode (UI::Graphics &gc, int x, int y)

Node *	findNode (UI::Graphics &gc, Box b)

void	selectBox (UI::Graphics &gc, Node *start, Box b)

void	eraseSelection (Node *node)

bool	simplify ()

void	normalize ()

NodeIterator	begin ()

NodeIterator	end ()

NodeIterator	last ()

void	insert (FactorIterator &it, const std::string &text)

Node *	getRoot ()

Node *	getSelectStart ()

Node *	getSelectEnd ()

Constructors and Virtual Destructor
	Equation (const std::string &eq)

	Equation (std::istream &is)

	Equation (const Equation &eqn)

	~Equation ()

Overloaded Equal Operators
Equation &	operator= (const Equation &eqn)

	Equation (Equation &&eqn)=delete
	No move copy constructor.

Equation &	operator= (Equation &&eqn)=delete
	No move equal operator.

Private Member Functions
void	setSelect (UI::Graphics &gc)

void	factor (std::string text, NodeVector &factors, Node *parent)

void	xml_out (XML::Stream &xml) const

void	xml_in (EqnXMLParser &in)

Private Attributes
NodePtr	m_root
	Equation owns this tree.

std::vector< Input * >	m_inputs
	List of input nodes in equation.

int	m_input_index = -1
	Index of current input.

Node *	m_selectStart = nullptr
	Node at start of selection.

Node *	m_selectEnd = nullptr
	Node at end of selection.

Detailed Description

Holds the node tree that represents a mathematical equation. It also provides an interface for manipulating the nodes to algebraically transform the equation and to save, load and draw an equation.

Constructor & Destructor Documentation

Equation::Equation ( const std::string & eq )

Constructor to load an equation represented by string such as 'a+b/c'.

Parameters

eq	String containing equation to be created.

Equation::Equation ( std::istream & is )

Constructor to load an equation from xml.

Parameters

is	Input stream containing xml.

Equation::Equation ( const Equation & eqn )

inline

Copy constructor based on overloaded equal operator.

Parameters

eqn	Equation class object to be copied

Equation::~Equation ( )

inline

Destructor deletes node tree to clean up after itself.

Member Function Documentation

void Equation::addInput ( Input * in )

inline

Add new input node to this equation's list of inputs.

Parameters

in	New input node.

NodeIterator Equation::begin ( )

inline

Get left most node of equation.

bool Equation::blink ( )

inline

Check where there is an active input in this equation object.

Returns: If true, there is an active input.

Equation * Equation::clone ( )

Get equation object that is copy of this equation object.

Returns: Cloned equation object.

FactorIterator Equation::disableCurrentInput ( )

Remove current input node.

void Equation::draw	(	UI::Graphics &	gc,
		bool	fRefresh = `false`
	)

Draw equation in given graphic context.

Parameters

gc	Grahics context.
fRefresh	If true, complete all drawing to graphics context.

NodeIterator Equation::end ( )

inline

Get end iterator of equation.

void Equation::eraseSelection ( Node * node )

Erase current selection and replace with new node. If node parameter is null, selection will just be erased.

Parameters

node	Node to replace current selection.

void Equation::factor	(	std::string	text,
		NodeVector &	factors,
		Node *	parent
	)

private

Helper static function that parses term in string, load factors into array.

Node * Equation::findNode	(	UI::Graphics &	gc,
		int	x,
		int	y
	)

Query root node for deepest node at coordinates x, y in given graphics context. Call findNode method of root node. If input node found, delete it and search again.

Parameters

gc	Graphics context.
x	Horizontal coordinate.
y	Vertical coordinate.

Returns: Node found at x,y coordinates. Null if none found.

Node * Equation::findNode	(	UI::Graphics &	gc,
		Box	b
	)

Query root node for shallowest factor node at inside rectangle box in given graphics context. Call findNode(UI::Graphics&, Box&) method of root node.

Parameters

gc	Graphics context.
b	Bounding box

Returns: Node found inside bounding box b. Null if none found.

Input* Equation::getCurrentInput ( )

inline

Get current input node.

Returns: Current input node.

void Equation::getCursorOrig	(	int &	x,
		int &	y
	)

Get coordinates of current active input.

Parameters

[out]	x	Horizontal origin of curosr.
[out]	y	Vertical origin cursor.

void Equation::insert	(	FactorIterator &	it,
		const std::string &	text
	)

Use iterator to insert factors from parsed string.

Parameters

[in,out]	it	Iterator to position to insert factors. On exit points to factor after last factor inserted.
	text	String to get parsed factors.

NodeIterator Equation::last ( )

inline

Get right most node of equation.

void Equation::nextInput ( bool fShift )

Get next input in list after current input node.

void Equation::normalize ( )

inline

Normalize equation to standard format.

Equation & Equation::operator= ( const Equation & eqn )

Overloaded equal operator that copies node tree from another object. Given equation object is serialized to xml and then deserialized into this object.

Parameters

eqn	Equation class object to be copied.

void Equation::removeInput ( Input * in )

Remove input node from equation's list of input nodes.

Parameters

in	Input node to be removed.

void Equation::selectBox	(	UI::Graphics &	gc,
		Node *	start,
		Box	b
	)

Select region starting from Node object start to last node still in bounding rectangle b.

Parameters

gc	Graphics context.
start	Starting node.
b	Bounding box.

void Equation::selectNodeOrInput ( Node * node )

Either select single node or if Input node make current input.

Parameters

node	Node to be selected or input to be activated.

void Equation::setCurrentInput ( int in_sn )

Set current active input node.

Parameters

in_sn Serial number of new active input.

void Equation::setSelect	(	Node *	start,
		Node *	end = `nullptr`
	)

Set start and end of selection. If end parameter is null, then only start node is selected.

Parameters

start	Node that starts selection.
end	Node that ends selection.

void Equation::setSelect ( UI::Graphics & gc )

private

Draw current selection in graphics context.

Parameters

gc	Graphics context.

void Equation::setSelectEnd ( Node * end )

inline

Set end of selection.

Returns: end Node to be end of selection.

void Equation::setSelectFromNode ( Node * node )

Set selection of this equation from selection state of node. If node has selection set to start, set as start of selection. If node has selection set to end, set as end of selection. If node has selection set to all, set as start and end of selection. return node Node whose selection state is referenced.

void Equation::setSelectStart ( Node * start )

inline

Set start of selection.

Returns: start Node to be start of selection.

bool Equation::simplify ( )

inline

Simplify equation algebracially. Call normalize() method of root node and then simplifly().

Returns: Return result of m_root->simplify().

std::string Equation::toString ( ) const

inline

Get string representation of equation. Example: '(a+b/c)'.

Returns: String representation of equation.

void Equation::xml_in ( EqnXMLParser & in )

private

Load equation from input xml stream.

Parameters

in	Input XML stream.

void Equation::xml_out ( std::ostream & os ) const

Serialize equation as xml to output stream.

Parameters

os	Output stream.

void Equation::xml_out ( std::string & str ) const

Serialize equation as xml to string.

Parameters

str	Output string object.

void Equation::xml_out ( XML::Stream & xml ) const

private

Output equation into output xml stream.

Returns: xml XML output stream.

The documentation for this class was generated from the following files:
