#include <milo.h>

Inheritance diagram for Input:

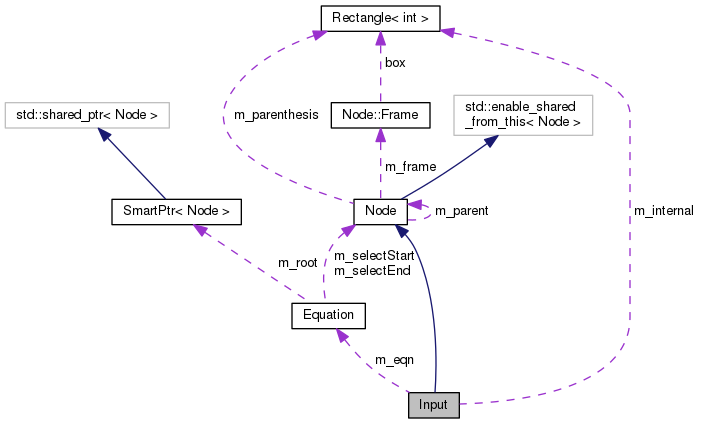

Collaboration diagram for Input:

[legend]

Public Member Functions
Constructor and Virtual Destructor
	Input (Parser &p, Node *parent=nullptr)

	Input (Equation &eqn, std::string txt=std::string(), bool current=true, Node *parent=nullptr, bool neg=false, Node::Select s=Node::Select::NONE)

	Input (EqnXMLParser &in, Node *parent)

	~Input ()
	Virtual desctructor.

Virtual Public Member Functions
std::string	toString () const

int	numFactors () const

const std::string &	getName () const

std::type_index	getType () const

Helper Public Member functions
bool	empty () const

void	add (char ch)

void	add (const std::string &s)

void	remove ()

void	clear ()

const std::string &	getBuffer ()

bool	checkSN (int sn)

bool	getCurrent ()

void	setCurrent (bool current)

void	makeCurrent ()

FactorIterator	emptyBuffer ()

bool	unremovable ()

Public Member Functions inherited from Node
void	calculateSize (UI::Graphics &gc)

void	out (XML::Stream &xml)

void	calculateOrigin (UI::Graphics &gc, int x, int y)

void	setUpDraw (UI::Graphics &gc)

void	draw (UI::Graphics &gc) const

void	setSelect (Select s)

Select	getSelect () const

void	setDrawParenthesis (bool fDrawPar)

bool	getDrawParenthesis () const

const Frame &	getFrame () const

Node *	first ()

Node *	last ()

Node *	getNextLeft ()

Node *	getNextRight ()

void	setParent (Node *parent)

Node *	getParent () const

int	getDepth () const

int	getNth () const

void	addNth (int n)

void	multNth (int n)

void	setNth (int n)

void	negative ()

bool	getSign () const

Complex	getValue () const

std::shared_ptr< Node >	getSharedPtr ()

	Node (Node *parent=nullptr, bool fNeg=false, Select s=NONE)

	Node (EqnXMLParser &in, Node *parent)

virtual	~Node ()
	Abstract base class needs virtual desctructor.

virtual bool	isLeaf () const

virtual bool	isFactor () const

virtual Node *	findNode (int x, int y)

virtual Node *	findNode (const Box &b)

virtual void	normalize ()

virtual bool	simplify ()

virtual bool	less (NodePtr b) const

Static Public Member Functions
static Input *	parse (Parser &p, Node *parent=nullptr)

Static Public Member Functions inherited from Node
static bool	createNodeByName (std::string name, Equation &eqn)

Static Public Attributes
static const std::string	name = "input"
	Name of Input class.

static const std::type_index	type = typeid(Input)
	Type of Input class.

Static Public Attributes inherited from Node
static const std::vector< std::string >	select_tags = { "NONE", "START", "END", "ALL" }

Private Member Functions
Virtual Private Member Functions
Frame	calcSize (UI::Graphics &gc)

void	calcOrig (UI::Graphics &gc, int x, int y)

void	drawNode (UI::Graphics &gc) const

Complex	getNodeValue () const

void	xml_out (XML::Stream &xml) const

Private Attributes
int	m_sn
	Unique serial number of Input class.

std::string	m_typed
	Stored type characters from keyboard.

bool	m_current
	True if current active Input class object.

Equation &	m_eqn
	Equation class object containing this input node.

Box	m_internal
	Bounding box of Input node.

Static Private Attributes
static int	input_sn = -1
	Serial number of last created Input node.

Additional Inherited Members
Public Types inherited from Node
enum	Select { NONE, START, END, ALL }

Detailed Description

Take input from keyboard and display it on screen. Usually just holds a string of letters and numbers representing a term.

Constructor & Destructor Documentation

Input::Input	(	Parser &	p,
		Node *	parent = `nullptr`
	)

Constructor using a text parser for input.

Parameters

p	Input parser.
parent	Parent of this input node.

Input::Input	(	Equation &	eqn,
		std::string	txt = `std::string()`,
		bool	current = `true`,
		Node *	parent = `nullptr`,
		bool	neg = `false`,
		Node::Select	s = `Node::Select::NONE`
	)

Constructor directly taking all needed parameters.

Parameters

eqn	Equation holding this input.
txt	Text stored from keyboard.
current	True if active.
parent	Parent node.
neg	True if negative sign.
s	Selection state.

Input::Input	(	EqnXMLParser &	in,
		Node *	parent
	)

Constructor using xml for input

Parameters

in	XML input stream.
parent	Parent of this input node.

Member Function Documentation

void Input::add ( char ch )

inline

Add charactor to end of input buffer.

Parameters

ch	Character to add to end of buffer.

void Input::add ( const std::string & s )

inline

Add string to end of input buffer.

Parameters

s	String to add to end of buffer.

void Input::calcOrig	(	UI::Graphics &	gc,
		int	x,
		int	y
	)

privatevirtual

Calculate origin of this node offset from the point (x,y) given it.

Parameters

gc	Graphics context.
x	Horizontal origin.
y	Vertical origin.

Implements Node.

Node::Frame Input::calcSize ( UI::Graphics & gc )

privatevirtual

Calculate size of this node in given graphics context.

Parameters

gc	Graphics context.

Returns: Return frame containing size of this node.

Implements Node.

bool Input::checkSN ( int sn )

inline

Check if serial number matches this node.

Parameters

sn	Serial number to check.

Returns: True if serial number matches.

void Input::clear ( )

inline

Clear input buffer.

void Input::drawNode ( UI::Graphics & gc ) const

privatevirtual

Draw this node in the given graphical context.

Parameters

gc	Graphical context.

Implements Node.

bool Input::empty ( ) const

inline

Check if input buffer is empty.

Returns: True if input buffer is empty

FactorIterator Input::emptyBuffer ( )

Parse and empty the conents of the input buffer. Parse the contents of the buffer and insert them before the Input object. Clear the contents of the buffer and return iterator to new position of Input object.

Returns: Iterator to current position of this object.

const std::string& Input::getBuffer ( )

inline

Get input buffer.

Returns: Reference to input buffer.

bool Input::getCurrent ( )

inline

Get state of this node being the active input.

Returns: If true, this is the current input.

const std::string& Input::getName ( ) const

inlinevirtual

Get name of this class.

Returns: Name of this class.

Implements Node.

Complex Input::getNodeValue ( ) const

privatevirtual

Throw an error if this is called.

Returns: Nothing is ever returned.

Implements Node.

std::type_index Input::getType ( ) const

inlinevirtual

Get type of this class.

Returns: Type of this class.

Implements Node.

void Input::makeCurrent ( )

inline

Make this node the current input.

int Input::numFactors ( ) const

inlinevirtual

Get number of factors in this node.

Returns: Number of factors.

Reimplemented from Node.

Input * Input::parse	(	Parser &	p,
		Node *	parent = `nullptr`
	)

static

Static helper function to parse Input class. Parser class object should be pointing to a string representation of an input node.

Parameters

p	Parser class object.
parent	Parent of return Input class object.

Returns: Newly created Input class object.

void Input::remove ( )

inline

Remove character from end of input buffer.

void Input::setCurrent ( bool current )

inline

Set state of this node being the active input.

Parameters

current True, if current active input.

string Input::toString ( ) const

virtual

Output text repesentation of input node. If empty output a '?' or a '#' if active. Otherwise '[typed_text]'.

Returns: String containing text representation.

Implements Node.

bool Input::unremovable ( )

inline

Determine if input is to be removed when deactivated. Input nodes that are empy and the only factor in their term should not be removed when deactivated. All others are.

Returns: True if input node should be removed when deactivated.

void Input::xml_out ( XML::Stream & xml ) const

privatevirtual

Output XML of this node.

Parameters

xml	XML output stream.

Implements Node.

The documentation for this class was generated from the following files:
