#include <nodes.h>

Inheritance diagram for Divide:

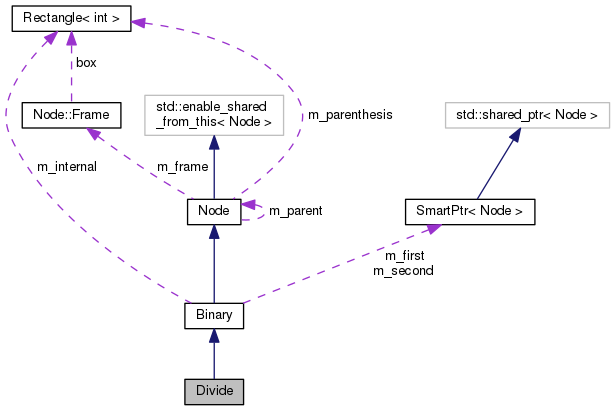

Collaboration diagram for Divide:

[legend]

Public Member Functions
Constructor and Virtual Destructor
	Divide (Node one, Node two, Node *parent, bool neg=false, Node::Select s=Node::Select::NONE)

	Divide (EqnXMLParser &in, Node *parent)

	~Divide ()

Virtual Public Member Functions
const std::string &	getName () const

std::type_index	getType () const

void	normalize ()

bool	simplify ()

Public Member Functions inherited from Binary
ExpressionPtr	getFirstExpression ()

ExpressionPtr	getSecondExpression ()

	Binary (char op, Node one, Node two, Node *parent, bool neg, Node::Select s)

	Binary (EqnXMLParser &in, Node *parent)

virtual	~Binary ()

std::string	toString () const

bool	isLeaf () const

Node *	findNode (int x, int y)

Node *	findNode (const Box &b)

int	numFactors () const

Public Member Functions inherited from Node
void	calculateSize (UI::Graphics &gc)

void	out (XML::Stream &xml)

void	calculateOrigin (UI::Graphics &gc, int x, int y)

void	setUpDraw (UI::Graphics &gc)

void	draw (UI::Graphics &gc) const

void	setSelect (Select s)

Select	getSelect () const

void	setDrawParenthesis (bool fDrawPar)

bool	getDrawParenthesis () const

const Frame &	getFrame () const

Node *	first ()

Node *	last ()

Node *	getNextLeft ()

Node *	getNextRight ()

void	setParent (Node *parent)

Node *	getParent () const

int	getDepth () const

int	getNth () const

void	addNth (int n)

void	multNth (int n)

void	setNth (int n)

void	negative ()

bool	getSign () const

Complex	getValue () const

std::shared_ptr< Node >	getSharedPtr ()

	Node (Node *parent=nullptr, bool fNeg=false, Select s=NONE)

	Node (EqnXMLParser &in, Node *parent)

virtual	~Node ()
	Abstract base class needs virtual desctructor.

virtual bool	isFactor () const

virtual bool	less (NodePtr b) const

Static Public Member Functions
static bool	create (Equation &eqn)

Static Public Member Functions inherited from Binary
static Node *	parse (Parser &p, Node one, Node parent)

Static Public Member Functions inherited from Node
static bool	createNodeByName (std::string name, Equation &eqn)

Static Public Attributes
static const std::string	name = "divide"
	Name of Divide class.

static const std::type_index	type = typeid(Divide)
	Type of Divide class.

Static Public Attributes inherited from Node
static const std::vector< std::string >	select_tags = { "NONE", "START", "END", "ALL" }

Private Member Functions
Virtual Private Member Functions
Frame	calcSize (UI::Graphics &gc)

void	calcOrig (UI::Graphics &gc, int x, int y)

void	drawNode (UI::Graphics &gc) const

Complex	getNodeValue () const

Static Private Member Functions
static Node *	normalize (Node *n)

Additional Inherited Members
Public Types inherited from Node
enum	Select { NONE, START, END, ALL }

Protected Attributes inherited from Binary
char	m_op
	Character repesentation of operator.

NodePtr	m_first
	First expression owned by this object.

NodePtr	m_second
	Second expression owned by this object.

Box	m_internal
	Bounding box of this node.

Detailed Description

Represents the division operator. Inherits from Binary class and is drawn with two expressions separated by a horizontal line.

Constructor & Destructor Documentation

Divide::Divide	(	Node *	one,
		Node *	two,
		Node *	parent,
		bool	neg = `false`,
		Node::Select	s = `Node::Select::NONE`
	)

inline

Constructor for Divide class.

Parameters

one	First expression.
two	Second expression.
parent	Parent node.
neg	If true, node is negative.
s	Selection state of node.

Divide::Divide	(	EqnXMLParser &	in,
		Node *	parent
	)

inline

XML constructor for Divide class. Read in XML for Divide class.

Parameters

in	XML input stream.
parent	Parent node object.

Divide::~Divide ( )

inline

Abstract base class needs virtual destructor.

Member Function Documentation

void Divide::calcOrig	(	UI::Graphics &	gc,
		int	x,
		int	y
	)

privatevirtual

Calculate origin of this node offset from the point (x,y) given it.

Parameters

gc	Graphics context.
x	Horizontal origin.
y	Vertical origin.

Implements Node.

Node::Frame Divide::calcSize ( UI::Graphics & gc )

privatevirtual

Calculate size of this node in given graphics context.

Parameters

gc	Graphics context.

Returns: Return frame containing size of this node.

Implements Node.

bool Divide::create ( Equation & eqn )

static

Static helper function to create new Divide node object. Create a new divide node object at the eqn's current input.

Parameters

eqn	Equation to create new divide object.

Returns: bool True, if divide object created.

void Divide::drawNode ( UI::Graphics & gc ) const

privatevirtual

Draw this node in the given graphical context.

Parameters

gc	Graphical context.

Implements Node.

const std::string& Divide::getName ( ) const

inlinevirtual

Get name of this class.

Returns: Name of this class.

Implements Node.

Complex Divide::getNodeValue ( ) const

privatevirtual

Get value of this subtree.

Returns: Complex value of this subtree.

Implements Node.

std::type_index Divide::getType ( ) const

inlinevirtual

Get name of this class.

Returns: Name of this class.

Implements Node.

void Divide::normalize ( )

virtual

Refactor subtree to a standard form. For Divide class, replace a/b with ab^-1.

Reimplemented from Node.

Node * Divide::normalize ( Node * n )

staticprivate

Static Helper function for Divide::normalize()

Parameters

n	Node* containing a/b

Returns: Return expressoin ab^-1

bool Divide::simplify ( )

virtual

Attempt to algebraically simplify the subtree this node is the root.

Returns: True, if subtree was changed.

Reimplemented from Node.

The documentation for this class was generated from the following files:
