#include <nodes.h>

Inheritance diagram for Binary:

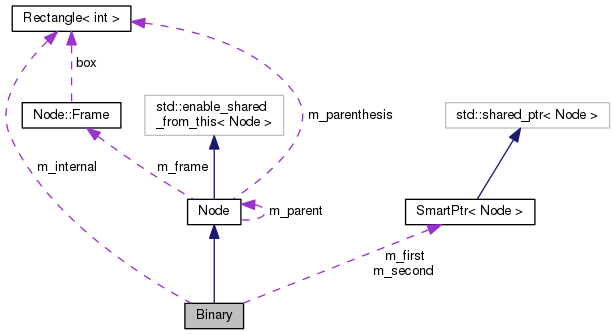

Collaboration diagram for Binary:

[legend]

Public Member Functions
ExpressionPtr	getFirstExpression ()

ExpressionPtr	getSecondExpression ()

Constructor and Virtual Destructor
	Binary (char op, Node one, Node two, Node *parent, bool neg, Node::Select s)

	Binary (EqnXMLParser &in, Node *parent)

virtual	~Binary ()

Virtual Public Member Functions
std::string	toString () const

bool	isLeaf () const

Node *	findNode (int x, int y)

Node *	findNode (const Box &b)

int	numFactors () const

Public Member Functions inherited from Node
void	calculateSize (UI::Graphics &gc)

void	out (XML::Stream &xml)

void	calculateOrigin (UI::Graphics &gc, int x, int y)

void	setUpDraw (UI::Graphics &gc)

void	draw (UI::Graphics &gc) const

void	setSelect (Select s)

Select	getSelect () const

void	setDrawParenthesis (bool fDrawPar)

bool	getDrawParenthesis () const

const Frame &	getFrame () const

Node *	first ()

Node *	last ()

Node *	getNextLeft ()

Node *	getNextRight ()

void	setParent (Node *parent)

Node *	getParent () const

int	getDepth () const

int	getNth () const

void	addNth (int n)

void	multNth (int n)

void	setNth (int n)

void	negative ()

bool	getSign () const

Complex	getValue () const

std::shared_ptr< Node >	getSharedPtr ()

	Node (Node *parent=nullptr, bool fNeg=false, Select s=NONE)

	Node (EqnXMLParser &in, Node *parent)

virtual	~Node ()
	Abstract base class needs virtual desctructor.

virtual bool	isFactor () const

virtual void	normalize ()

virtual bool	simplify ()

virtual bool	less (NodePtr b) const

virtual const std::string &	getName () const =0

virtual std::type_index	getType () const =0

Static Public Member Functions
static Node *	parse (Parser &p, Node one, Node parent)

Static Public Member Functions inherited from Node
static bool	createNodeByName (std::string name, Equation &eqn)

Protected Attributes
char	m_op
	Character repesentation of operator.

NodePtr	m_first
	First expression owned by this object.

NodePtr	m_second
	Second expression owned by this object.

Box	m_internal
	Bounding box of this node.

Private Member Functions
Virtual Private Member Functions
Node *	downLeft ()

Node *	downRight ()

Node *	getLeftSibling (Node *node)

Node *	getRightSibling (Node *node)

void	xml_out (XML::Stream &xml) const

Additional Inherited Members
Public Types inherited from Node
enum	Select { NONE, START, END, ALL }

Static Public Attributes inherited from Node
static const std::vector< std::string >	select_tags = { "NONE", "START", "END", "ALL" }

Detailed Description

Base class for nodes represent an operator that contains two expressions. Not all pure virtual functions are overriden so is an abstract base class.

Constructor & Destructor Documentation

Binary::Binary	(	char	op,
		Node *	one,
		Node *	two,
		Node *	parent,
		bool	neg,
		Node::Select	s
	)

inline

Constructor for Binary class.

Parameters

op	Character representing operator.
one	First expression.
two	Second expression.
parent	Parent node.
neg	If true, node is negative.
s	Selection state of node.

Binary::Binary	(	EqnXMLParser &	in,
		Node *	parent
	)

XML constructor for Binary class. Read in XML that is common for all nodes that have a Binary base class.

Parameters

in	XML input stream.
parent	Parent node object.

virtual Binary::~Binary ( )

inlinevirtual

Virtual desctructor. Abstract base class needs virtual desctructor.

Member Function Documentation

Node* Binary::downLeft ( )

inlineprivatevirtual

Get left node. For Binary class is its first expression.

Returns: Left node.

Reimplemented from Node.

Node* Binary::downRight ( )

inlineprivatevirtual

Get right node. For Binary class is its second expression.

Returns: Right node.

Reimplemented from Node.

Node * Binary::findNode	(	int	x,
		int	y
	)

virtual

Rescursive search to find deepest node at point (x,y).

Parameters

x	horizontal coordinate.
y	vertical coordinate.

Returns: Deepest node at point (x,y).

Reimplemented from Node.

Node * Binary::findNode ( const Box & b )

virtual

Recursive function to return first node from a top to bottom search whose frame is inside Box b.

Parameters

b	Bounding box.

Returns: Top node inside bounding box.

Reimplemented from Node.

ExpressionPtr Binary::getFirstExpression ( )

Get first expression of this node.

Returns: First expression.

Node* Binary::getLeftSibling ( Node * node )

inlineprivatevirtual

Left sibiling of given node. If node given is right node, return left node.

Parameters

node	Reference node.

Returns: Left sibiling or null.

Reimplemented from Node.

Node* Binary::getRightSibling ( Node * node )

inlineprivatevirtual

Right sibiling of given node. If node given is left node, return right node.

Parameters

node	Reference node.

Returns: Right sibiling or null.

Reimplemented from Node.

ExpressionPtr Binary::getSecondExpression ( )

Get second expression of this node.

Returns: Second expression.

bool Binary::isLeaf ( ) const

inlinevirtual

Override for isLeaf virtual function.

Returns: False, this node has child nodes.

Reimplemented from Node.

int Binary::numFactors ( ) const

inlinevirtual

Get number of factor in this subtree.

Returns: Return number of factors in both expressions.

Reimplemented from Node.

Node * Binary::parse	(	Parser &	p,
		Node *	one,
		Node *	parent
	)

static

Static helper function to parse Binary class.

Parameters

p	Parser object pointing to operator.
one	First expression already parsed.
parent	Parent node.

Returns: Binary object or null if operator not binary.

std::string Binary::toString ( ) const

inlinevirtual

Get string representation of Binary object. Simply first node, operator, second node.

Returns: String representation of Binary object.

Implements Node.

void Binary::xml_out ( XML::Stream & xml ) const

privatevirtual

Output XML of this node.

Parameters

xml	XML output stream.

Implements Node.
