#include <milo.h>

Inheritance diagram for Expression:

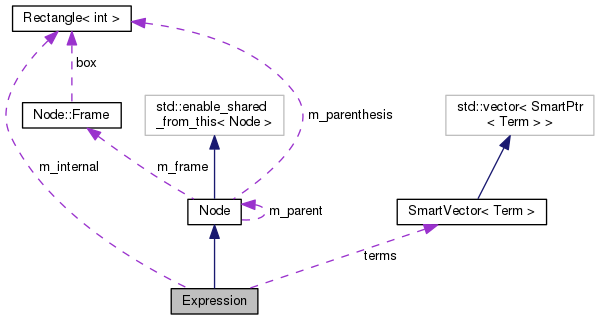

Collaboration diagram for Expression:

[legend]

Public Member Functions
int	numTerms () const

void	setParent ()

TermVector::iterator	begin ()

TermVector::iterator	end ()

void	add (double n)

void	add (ExpressionPtr old_expr)

Constructor and Virtual Destructor
	Expression (EqnXMLParser &in, Node *parent=nullptr)

	Expression (Parser &p, Node *parent=nullptr)

	Expression (Term term, Node parent=nullptr)

	Expression (Node factor, Node parent=nullptr)

	~Expression ()

Virtual Public Member Functions
std::string	toString () const

bool	isLeaf () const

Node *	findNode (int x, int y)

Node *	findNode (const Box &b)

int	numFactors () const

void	normalize ()

bool	simplify ()

const std::string &	getName () const

std::type_index	getType () const

Public Member Functions inherited from Node
void	calculateSize (UI::Graphics &gc)

void	out (XML::Stream &xml)

void	calculateOrigin (UI::Graphics &gc, int x, int y)

void	setUpDraw (UI::Graphics &gc)

void	draw (UI::Graphics &gc) const

void	setSelect (Select s)

Select	getSelect () const

void	setDrawParenthesis (bool fDrawPar)

bool	getDrawParenthesis () const

const Frame &	getFrame () const

Node *	first ()

Node *	last ()

Node *	getNextLeft ()

Node *	getNextRight ()

void	setParent (Node *parent)

Node *	getParent () const

int	getDepth () const

int	getNth () const

void	addNth (int n)

void	multNth (int n)

void	setNth (int n)

void	negative ()

bool	getSign () const

Complex	getValue () const

std::shared_ptr< Node >	getSharedPtr ()

	Node (Node *parent=nullptr, bool fNeg=false, Select s=NONE)

	Node (EqnXMLParser &in, Node *parent)

virtual	~Node ()
	Abstract base class needs virtual desctructor.

virtual bool	isFactor () const

virtual bool	less (NodePtr b) const

Static Public Member Functions
static Term *	getTerm (Equation &eqn, const std::string &text, Expression *parent=nullptr)

static Term *	getTerm (Parser &p, Expression *parent)

static Node *	parse (Parser &p, Node *parent)

Static Public Member Functions inherited from Node
static bool	createNodeByName (std::string name, Equation &eqn)

Static Public Attributes
static const std::string	name = "expression"
	Name of this class.

static const std::type_index	type = typeid(Expression)
	Type of this class.

Static Public Attributes inherited from Node
static const std::vector< std::string >	select_tags = { "NONE", "START", "END", "ALL" }

Private Member Functions
bool	add (Parser &p)

Virtual Private Member Functions
Node *	downLeft ()

Node *	downRight ()

Node *	getLeftSibling (Node *node)

Node *	getRightSibling (Node *node)

void	xml_out (XML::Stream &xml) const

Frame	calcSize (UI::Graphics &gc)

void	calcOrig (UI::Graphics &gc, int x, int y)

void	drawNode (UI::Graphics &gc) const

Complex	getNodeValue () const

Private Attributes
TermVector	terms
	Expression owns this tree a list of terms.

Box	m_internal
	Bounding box of this node.

Friends
class	FactorIterator

Additional Inherited Members
Public Types inherited from Node
enum	Select { NONE, START, END, ALL }

Detailed Description

Represents an expression as a vector of terms which are added together. Subtract happens by setting nodes to a negative sign. A vector of (ac,-b,2,i,3) is equivalent to ac-b+2+i3.

Constructor & Destructor Documentation

Expression::Expression	(	EqnXMLParser &	in,
		Node *	parent = `nullptr`
	)

XML constructor for Expression class. Read in XML for Expression class.

Parameters

in	XML input stream.
parent	Parent node object.

Expression::Expression	(	Parser &	p,
		Node *	parent = `nullptr`
	)

inline

Parser constructor for Expression class.

Parameters

p	Parser object.
parent	Parent node.

Expression::Expression	(	Term *	term,
		Node *	parent = `nullptr`
	)

inline

Constructor for Expression class.

Parameters

term	Initialize term vector with this term.
parent	Parent expresion.

Expression::Expression	(	Node *	factor,
		Node *	parent = `nullptr`
	)

inline

Constructor for Expression class.

Parameters

factor	Initialize term vector with new term containing node.
parent	Parent expresion.

Expression::~Expression ( )

inline

Abstract base class needs virtual destructor.

Member Function Documentation

void Expression::add ( double n )

Add a Number to expression.

Parameters

n	Numeric value to be added.

Returns: Expression + n.

void Expression::add ( ExpressionPtr old_expr )

Add terms from Expression object.

Parameters

old_expr Expression object.

bool Expression::add ( Parser & p )

private

Add terms to expression from parser.

Parameters

p	Parser object.

Returns: True, if term was added.

TermVector::iterator Expression::begin ( )

inline

Get iterator to first term of Expression.

Returns: Iterator of first term.

void Expression::calcOrig	(	UI::Graphics &	gc,
		int	x,
		int	y
	)

privatevirtual

Calculate origin of this node offset from the point (x,y) given it.

Parameters

gc	Graphics context.
x	Horizontal origin.
y	Vertical origin.

Implements Node.

Node::Frame Expression::calcSize ( UI::Graphics & gc )

privatevirtual

Calculate size of this node in given graphics context.

Parameters

gc	Graphics context.

Returns: Return frame containing size of this node.

Implements Node.

Node* Expression::downLeft ( )

inlineprivatevirtual

Get left node. For Expression class is its first term.

Returns: Left node.

Reimplemented from Node.

Node* Expression::downRight ( )

inlineprivatevirtual

Get right node. For Expression class is its last term.

Returns: Right node.

Reimplemented from Node.

void Expression::drawNode ( UI::Graphics & gc ) const

privatevirtual

Draw this node in the given graphical context.

Parameters

gc	Graphical context.

Implements Node.

TermVector::iterator Expression::end ( )

inline

Get iterator to end of Expression.

Returns: Last term iterator.

Node * Expression::findNode	(	int	x,
		int	y
	)

virtual

Rescursive search to find deepest node at point (x,y).

Parameters

x	horizontal coordinate.
y	vertical coordinate.

Returns: Deepest node at point (x,y).

Reimplemented from Node.

Node * Expression::findNode ( const Box & b )

virtual

Recursive function to return first node from a top to bottom search whose frame is inside Box b.

Parameters

b	Bounding box.

Returns: Top node inside bounding box.

Reimplemented from Node.

Node * Expression::getLeftSibling ( Node * node )

privatevirtual

Left sibiling of given node.

Parameters

node	Reference node.

Returns: Left sibiling or null.

Reimplemented from Node.

const std::string& Expression::getName ( ) const

inlinevirtual

Get name of this class.

Returns: Name of this class.

Implements Node.

Complex Expression::getNodeValue ( ) const

privatevirtual

Get value of this subtree.

Returns: Complex value of this subtree.

Implements Node.

Node * Expression::getRightSibling ( Node * node )

privatevirtual

Right sibiling of given node.

Parameters

node	Reference node.

Returns: Right sibiling or null.

Reimplemented from Node.

static Term* Expression::getTerm	(	Equation &	eqn,
		const std::string &	text,
		Expression *	parent = `nullptr`
	)

static

Helper static function to parse term from string value.

Parameters

eqn	Equation containg parent expression.
text	String value to be parsed.
parent	Parent expression.

Returns: Created Term object.

Term * Expression::getTerm	(	Parser &	p,
		Expression *	parent
	)

static

Helper static function to parse term.

Parameters

p	Parser object.
parent	Parent expression.

Returns: Created Term object.

std::type_index Expression::getType ( ) const

inlinevirtual

Get name of this class.

Returns: Name of this class.

Implements Node.

bool Expression::isLeaf ( ) const

inlinevirtual

Override for isLeaf virtual function.

Returns: False, this node has child nodes.

Reimplemented from Node.

void Expression::normalize ( )

virtual

Refactor subtree to a standard form. For Expression class, reorder terms in alphabetical order and combine common terms. ab+3ba normalized to 4ab.

Reimplemented from Node.

int Expression::numFactors ( ) const

virtual

Get number of factors in this node.

Returns: Number of factors.

Reimplemented from Node.

int Expression::numTerms ( ) const

inline

Get number of terms.

Returns: Number of terms.

Node * Expression::parse	(	Parser &	p,
		Node *	parent
	)

static

Helper static function to parse Expression.

Parameters

p	Parser object.
parent	Parent expression.

Returns: Created Expression object.

void Expression::setParent ( )

inline

Set parent of all terms to this expression.

bool Expression::simplify ( )

virtual

Attempt to algebraically simplify the subtree this node is the root.

Returns: True, if subtree was changed.

Reimplemented from Node.

string Expression::toString ( ) const

virtual

Get representation of expression as string. String are terms separated by '+' or '-'.

Returns: String representation of expression.

Implements Node.

void Expression::xml_out ( XML::Stream & xml ) const

privatevirtual

Output XML of this node.

Parameters

xml	XML output stream.

Implements Node.

The documentation for this class was generated from the following files:
