#include <milo.h>

Inheritance diagram for Term:

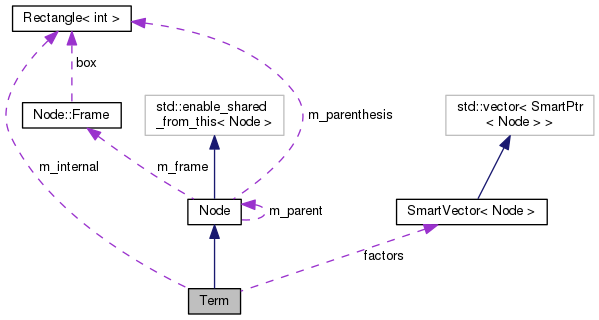

Collaboration diagram for Term:

[legend]

Public Member Functions
void	simplify (NodePtr ref, TermPtr new_term)

void	setParent ()

void	setParent (Expression *parent)

NodeIter	begin ()

NodeIter	end ()

void	multiply (double n)

void	multiply (TermPtr old_term)

std::shared_ptr< Term >	getSharedPtr ()

Constructor and Virtual Destructor
	Term (Parser &p, Expression *parent=nullptr)

	Term (EqnXMLParser &in, Node *parent=nullptr)

	Term (NodeVector &f, Expression *parent)

	Term (Node node, Expression parent=nullptr, bool fNeg=false)

	~Term ()

Virtual Public Member Functions
std::string	toString () const

bool	isLeaf () const

bool	isFactor () const

Node *	findNode (int x, int y)

Node *	findNode (const Box &b)

int	numFactors () const

void	normalize ()

bool	simplify ()

const std::string &	getName () const

std::type_index	getType () const

Public Member Functions inherited from Node
void	calculateSize (UI::Graphics &gc)

void	out (XML::Stream &xml)

void	calculateOrigin (UI::Graphics &gc, int x, int y)

void	setUpDraw (UI::Graphics &gc)

void	draw (UI::Graphics &gc) const

void	setSelect (Select s)

Select	getSelect () const

void	setDrawParenthesis (bool fDrawPar)

bool	getDrawParenthesis () const

const Frame &	getFrame () const

Node *	first ()

Node *	last ()

Node *	getNextLeft ()

Node *	getNextRight ()

void	setParent (Node *parent)

Node *	getParent () const

int	getDepth () const

int	getNth () const

void	addNth (int n)

void	multNth (int n)

void	setNth (int n)

void	negative ()

bool	getSign () const

Complex	getValue () const

std::shared_ptr< Node >	getSharedPtr ()

	Node (Node *parent=nullptr, bool fNeg=false, Select s=NONE)

	Node (EqnXMLParser &in, Node *parent)

virtual	~Node ()
	Abstract base class needs virtual desctructor.

virtual bool	less (NodePtr b) const

Static Public Member Functions
static Node *	parse (Parser &p, Node *parent=nullptr)

static bool	simplify (TermVector &terms, TermVector::iterator a, TermVector::iterator b)

static void	insertAfterMe (Node *me, NodePtr node)

static NodeIter	pos (Node *me)

Static Public Member Functions inherited from Node
static bool	createNodeByName (std::string name, Equation &eqn)

Static Public Attributes
static const std::string	name = "term"
	Name of Term class.

static const std::type_index	type = typeid(Term)
	Type of Term class.

Static Public Attributes inherited from Node
static const std::vector< std::string >	select_tags = { "NONE", "START", "END", "ALL" }

Private Member Functions
bool	add (Parser &p)

Virtual Private Member Functions
Node *	downLeft ()

Node *	downRight ()

Node *	getLeftSibling (Node *node)

Node *	getRightSibling (Node *node)

Complex	getNodeValue () const

void	xml_out (XML::Stream &xml) const

Frame	calcSize (UI::Graphics &gc)

void	calcOrig (UI::Graphics &gc, int x, int y)

void	drawNode (UI::Graphics &gc) const

Private Attributes
NodeVector	factors
	Term owns this tree.

Box	m_internal
	Bounding box of this node.

Friends
class	FactorIterator

Additional Inherited Members
Public Types inherited from Node
enum	Select { NONE, START, END, ALL }

Detailed Description

Represents a term as a vector of factors which are multiplied together.

Constructor & Destructor Documentation

Term::Term	(	Parser &	p,
		Expression *	parent = `nullptr`
	)

inline

Parser constructor for Term class.

Parameters

p	Parser object.
parent	Parent node.

Term::Term	(	EqnXMLParser &	in,
		Node *	parent = `nullptr`
	)

XML constructor for Term class. Read in XML for Term class.

Parameters

in	XML input stream.
parent	Parent node object.

Term::Term	(	NodeVector &	f,
		Expression *	parent
	)

inline

Constructor for Term class loading in factors from a node vector.

Parameters

f	Factors to be loaded into new Term object.
parent	Parent expresion.

Term::Term	(	Node *	node,
		Expression *	parent = `nullptr`,
		bool	fNeg = `false`
	)

inline

Constructor for Term class.

Parameters

node	Initialize node vector with this node.
parent	Parent expresion.
fNeg	If true, node is negative.

Term::~Term ( )

inline

Abstract base class needs virtual destructor.

Member Function Documentation

bool Term::add ( Parser & p )

private

Add factors to this Term object from parser.

Returns: True if factors were added.

NodeIter Term::begin ( )

inline

Get iterator to first factor of Term.

Returns: Iterator of first factor.

void Term::calcOrig	(	UI::Graphics &	gc,
		int	x,
		int	y
	)

privatevirtual

Calculate origin of this node offset from the point (x,y) given it.

Parameters

gc	Graphics context.
x	Horizontal origin.
y	Vertical origin.

Implements Node.

Node::Frame Term::calcSize ( UI::Graphics & gc )

privatevirtual

Calculate size of this node in given graphics context.

Parameters

gc	Graphics context.

Returns: Return frame containing size of this node.

Implements Node.

Node* Term::downLeft ( )

inlineprivatevirtual

Get left node. For Term class is its first factor.

Returns: Left node.

Reimplemented from Node.

Node* Term::downRight ( )

inlineprivatevirtual

Get right node. For Term class is its last factor.

Returns: Right node.

Reimplemented from Node.

void Term::drawNode ( UI::Graphics & gc ) const

privatevirtual

Draw this node in the given graphical context.

Parameters

gc	Graphical context.

Implements Node.

NodeIter Term::end ( )

inline

Get iterator to end of Term.

Returns: Last factor iterator.

Node * Term::findNode	(	int	x,
		int	y
	)

virtual

Rescursive search to find deepest node at point (x,y).

Parameters

x	horizontal coordinate.
y	vertical coordinate.

Returns: Deepest node at point (x,y).

Reimplemented from Node.

Node * Term::findNode ( const Box & b )

virtual

Recursive function to return first node from a top to bottom search whose frame is inside Box b.

Parameters

b	Bounding box.

Returns: Top node inside bounding box.

Reimplemented from Node.

Node * Term::getLeftSibling ( Node * node )

privatevirtual

Left sibiling of given node.

Parameters

node	Reference node.

Returns: Left sibiling or null.

Reimplemented from Node.

const std::string& Term::getName ( ) const

inlinevirtual

Get name of this class.

Returns: Name of this class.

Implements Node.

Complex Term::getNodeValue ( ) const

privatevirtual

Get value of this subtree.

Returns: Complex value of this subtree.

Implements Node.

Node * Term::getRightSibling ( Node * node )

privatevirtual

Right sibiling of given node.

Parameters

node	Reference node.

Returns: Right sibiling or null.

Reimplemented from Node.

std::shared_ptr<Term> Term::getSharedPtr ( )

inline

Return shared_ptr for this Term object. Downcast it from base Node shared pointer.

Returns: Shared pointer for this Term object

std::type_index Term::getType ( ) const

inlinevirtual

Get name of this class.

Returns: Name of this class.

Implements Node.

void Term::insertAfterMe	(	Node *	me,
		NodePtr	node
	)

static

Insert new node after a reference node in node vector.

Parameters

me	Reference node.
node	New node.

bool Term::isFactor ( ) const

inlinevirtual

Override for isFactor virtual function.

Returns: False, this node is not a factor.

Reimplemented from Node.

bool Term::isLeaf ( ) const

inlinevirtual

Override for isLeaf virtual function.

Returns: False, this node has child nodes.

Reimplemented from Node.

void Term::multiply ( double n )

Multiply this term by a number by inserting Number object.

Parameters

n	Value to multiply term by.

void Term::multiply ( TermPtr old_term )

Mulitiply this by term by another term.

Parameters

old_term Move factors into this Term object.

void Term::normalize ( )

virtual

Refactor subtree to a standard form. For Term class, reorder factors in a standard order and combine common factors. 2cb(3a)^4 normalized to 162bc(a^4)

Reimplemented from Node.

int Term::numFactors ( ) const

virtual

Get number of factor in this subtree.

Returns: Return total number of factors in term.

Reimplemented from Node.

Node * Term::parse	(	Parser &	p,
		Node *	parent = `nullptr`
	)

static

Static helper function to parse Term class.

Parameters

p	Parser object pointing to operator.
parent	Parent node.

Returns: Number object or null if number not present.

NodeIter Term::pos ( Node * me )

static

Helper static function to get iterator to given node.

Parameters

me	Pointer to a factor.

Returns: Iterator to node.

void Term::setParent ( )

inline

Set all factor's parent to this Term.

void Term::setParent ( Expression * parent )

inline

Reset parent expression of this Term.

Parameters

parent New parent expression.

bool Term::simplify ( )

virtual

Attempt to algebraically simplify the subtree this node is the root.

Returns: True, if subtree was changed.

Reimplemented from Node.

void Term::simplify	(	NodePtr	ref,
		TermPtr	new_term
	)

Helper function to take factors from a term and insert into this term.

Parameters

ref	Node in this term where new factors will be inserted.
new_term	Term object with factors to be transferred.

bool Term::simplify	(	TermVector &	terms,
		TermVector::iterator	a,
		TermVector::iterator	b
	)

static

Compare every term to every other term to see if can combined. If terms are the same excpet for a number, they are combined.

Parameters

terms	Reference to term vector.
a	Iterator to first term to be compared.
b	Iterator to second term to be compared. If terms are combined this is deleted.

Returns: True if terms were combined.

string Term::toString ( ) const

virtual

Get string representation of Term class. The factors are concatenated into one string.

Returns: String representation of Term class.

Implements Node.

void Term::xml_out ( XML::Stream & xml ) const

privatevirtual

Output XML of this node.

Parameters

xml	XML output stream.

Implements Node.
