#include <panel.h>

Inheritance diagram for UI::EqnPanel:

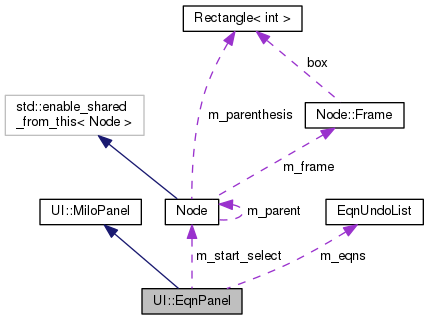

Collaboration diagram for UI::EqnPanel:

[legend]

Public Types
EqnPanel function pointer declerations.
using	key_handler = bool(*)(EqnPanel &, const KeyEvent &)

using	mouse_handler = bool(*)(EqnPanel &, const MouseEvent &)

using	menu_handler = bool(*)(EqnPanel &)

Public Member Functions
Constructors and Virtual Desctructor
	EqnPanel ()

	EqnPanel (std::istream &is)

	EqnPanel (const std::string &eq)

	~EqnPanel ()
	Virtual desctructor.

Virtual Public Member Functions
void	doKey (const KeyEvent &key)

void	doMouse (const MouseEvent &mouse)

bool	doMenu (const std::string &menuFunctionName)

void	doDraw ()

void	pushUndo ()

void	popUndo ()

void	saveState (std::ostream &fs)

void	loadState (std::istream &is)

bool	blink ()

void	getCursorOrig (int &x, int &y)

Helper Public Member functions
Equation &	getEqn ()

Equation &	newEqn (std::string eq)

Equation &	newEqn (std::istream &is)

void	set_refresh (bool refresh)

Public Member Functions inherited from UI::MiloPanel
	MiloPanel ()

	~MiloPanel ()

void	saveState (const std::string &filename)

void	loadState (const std::string &filename)

Static Public Attributes
static const std::string	name = "equation"
	Name of this panel.

Private Member Functions
Private member functions to handle UI events
bool	do_alphaNumber (const KeyEvent &event)

bool	do_backspace (const KeyEvent &event)

bool	do_left (const KeyEvent &event)

bool	do_right (const KeyEvent &event)

bool	do_shift_left (const KeyEvent &event)

bool	do_shift_right (const KeyEvent &event)

bool	do_up (const KeyEvent &event)

bool	do_down (const KeyEvent &event)

bool	do_shift_up (const KeyEvent &event)

bool	do_shift_down (const KeyEvent &event)

bool	do_enter (const KeyEvent &event)

bool	do_tab (const KeyEvent &event)

bool	do_plus_minus (const KeyEvent &event)

bool	do_divide (const KeyEvent &event)

bool	do_power (const KeyEvent &event)

bool	do_left_parenthesis (const KeyEvent &event)

bool	do_space (const KeyEvent &event)

bool	do_mouse_pressed (const MouseEvent &mouse)

bool	do_mouse_released (const MouseEvent &mouse)

bool	do_mouse_clicked (const MouseEvent &mouse)

bool	do_mouse_double (const MouseEvent &mouse)

bool	do_mouse_position (const MouseEvent &mouse)

Static Private Member Functions
Static member functions
static bool	do_init ()

static bool	emit_key (EqnPanel &panel, const KeyEvent &key)

Private Attributes
EqnPtr	m_eqn
	Shared pointer to current equation.

EqnUndoList	m_eqns
	Equation undo stack.

bool	m_fRefresh = true
	Refresh on very draw by default.

Node *	m_start_select = nullptr
	If not null, node is selected.

int	m_start_mouse_x = -1
	Horiz coord of start of mouse drag.

int	m_start_mouse_y = -1
	Vertical coord of start of mouse drag.

Static Private Attributes
static bool	init = EqnPanel::do_init()
	Should be true after static initilization.

Static member objects
static const std::unordered_map< MouseEvent, mouse_handler >	mouse_event_map

static const std::unordered_map< KeyEvent, key_handler >	key_event_map

static const std::unordered_map< std::string, menu_handler >	menu_map

Additional Inherited Members
Static Public Member Functions inherited from UI::MiloPanel
static MiloPanelPtr	makePanel (const std::string &name, const std::string &init)

Static Protected Attributes inherited from UI::MiloPanel
static std::unordered_map< std::string, panel_factory >	panel_map
	Map of name to panel create functions.

Detailed Description

Panel class for Equation class.

Member Typedef Documentation

using UI::EqnPanel::key_handler = bool (*)(EqnPanel&, const KeyEvent&)

Function pointer to handle key event. Pointer to event passed as argument. Return true, if event changed equation.

using UI::EqnPanel::menu_handler = bool (*)(EqnPanel&)

Function pointer to handle mouse event. Return true, if event changed equation.

using UI::EqnPanel::mouse_handler = bool (*)(EqnPanel&, const MouseEvent&)

Function pointer to handle mouse event. Pointer to event passed as argument. Return true, if event changed equation.

Constructor & Destructor Documentation

UI::EqnPanel::EqnPanel ( )

inline

Default Constructor for EqnPanel initializing Equation with single input.

UI::EqnPanel::EqnPanel ( std::istream & is )

inline

Constructor for EqnPanel initializing Equation with text stream.

UI::EqnPanel::EqnPanel ( const std::string & eq )

inline

Constructor for EqnPanel initializing Equation with string.

Member Function Documentation

bool EqnPanel::blink ( )

virtual

Check where there is an active input in this equation object.

Returns: If true, there is an active input.

Implements UI::MiloPanel.

bool EqnPanel::do_alphaNumber ( const KeyEvent & event )

private

Handle letter or number key event. Insert letter or number key into equation if there is a current input or selection.

Parameters

event Key event.

Returns: True if key event is processed.

bool EqnPanel::do_backspace ( const KeyEvent & event )

private

Handle backspace key event. Erase selection if it exists, or previous factor before current input.

Parameters

event Key event.

Returns: True if backspace is processed.

bool EqnPanel::do_divide ( const KeyEvent & event )

private

Insert divide term.

Parameters

event Key event.

Returns: True if successful.

bool EqnPanel::do_down ( const KeyEvent & event )

private

Handle down arrow key event. Transverse the entire equation tree to the right of the selection or the current input. Select last node if there is no selection or input.

Parameters

event Key event.

Returns: Always true.

bool EqnPanel::do_enter ( const KeyEvent & event )

private

Handle enter key event. Either disable current input or replace current selection with a new input.

Parameters

event Key event.

Returns: True if enter is proccessed.

bool EqnPanel::do_init ( )

staticprivate

Static initialization for class.

bool EqnPanel::do_left ( const KeyEvent & event )

private

Handle left arrow key event. Move to node to the left of selection or current input.

Parameters

event Key event.

Returns: True if left arrow proccessed.

bool EqnPanel::do_left_parenthesis ( const KeyEvent & event )

private

Handle left parenthesis key event. Add "(*)". Side effect will be to add any functions that matches or an expression as a new factor.

Parameters

event Key event.

Returns: True if successful.

bool EqnPanel::do_mouse_clicked ( const MouseEvent & mouse )

private

Handle mouse click. If mouse clicks on node select it or activate input.

Parameters

mouse Mouse Event

Returns: True if node selected.

bool EqnPanel::do_mouse_double ( const MouseEvent & mouse )

private

Handle mouse double click. If no node found, return false. Otherwise activate if input selected or add input before selected node.

Parameters

mouse Mouse Event

Returns: True, if node found.

bool EqnPanel::do_mouse_position ( const MouseEvent & mouse )

private

Handle mouse position reports, Update part of equation selected by mouse dragging.

Parameters

mouse Mouse Event

Returns: Always false.

bool EqnPanel::do_mouse_pressed ( const MouseEvent & mouse )

private

Handle mouse press event. If node has been selected, remember it and mouse coordinates.

Parameters

mouse Mouse Event

Returns: Always false.

bool EqnPanel::do_mouse_released ( const MouseEvent & mouse )

private

Handle mouse release event. If mouse released where it was pressed, select node. Otherwise, end mouse dragging state.

Parameters

mouse Mouse Event

Returns: Always true.

bool EqnPanel::do_plus_minus ( const KeyEvent & event )

private

Handle +/- key event. Add a new term with a new input. New term is positive or negative depending on whether character is +/-.

Parameters

event Key event.

Returns: True if input is active.

bool EqnPanel::do_power ( const KeyEvent & event )

private

Insert power factor.

Parameters

event Key event.

Returns: True if successfull.

bool EqnPanel::do_right ( const KeyEvent & event )

private

Handle right arrow key event. Move to node to the right of selection or current input.

Parameters

event Key event.

Returns: True if right arrow proccessed.

bool EqnPanel::do_shift_down ( const KeyEvent & event )

private

Handle down arrow with shift key event. Select the expression to the right of the current input or add it to the existing selection.

Parameters

event Key event.

Returns: True if down arrow with shift is processed.

bool EqnPanel::do_shift_left ( const KeyEvent & event )

private

Handle left arrow with shift key event. Either add factor on the left to selection or select factor to left of cursor.

Parameters

event Key event.

Returns: True if shift left arrow is processed.

bool EqnPanel::do_shift_right ( const KeyEvent & event )

private

Handle right arrow with shift key event. Either add factor on the right to selection or select factor to right of cursor.

Parameters

event Key event.

Returns: True if shift right arrow is processed.

bool EqnPanel::do_shift_up ( const KeyEvent & event )

private

Handle up arrow with shift key event. Select the expression to the left of the current input or add it to the existing selection.

Parameters

event Key event.

Returns: True if up arrow with shift is processed.

bool EqnPanel::do_space ( const KeyEvent & event )

private

Handle space key event. Either select factor at input or select one level higher.

Parameters

event Key event.

Returns: True if successful.

bool EqnPanel::do_tab ( const KeyEvent & event )

private

Handle tab key event. Move to next input. If shift down move to previous input.

Parameters

event Key event.

Returns: Always true

bool EqnPanel::do_up ( const KeyEvent & event )

private

Handle up arrow key event. Transverse the entire equation tree to the left of the selection or the current input. Select first node if there is no selection or input.

Parameters

event Key event.

Returns: Always true.

void EqnPanel::doDraw ( )

virtual

Handle redraw event

Implements UI::MiloPanel.

void EqnPanel::doKey ( const KeyEvent & key )

virtual

Handle key event for panel

Parameters

key Key event

Implements UI::MiloPanel.

bool EqnPanel::doMenu ( const std::string & menuFunctionName )

virtual

Execute panel specific function based on its name. Used for menu handling.

Parameters

menuFunctionName Name of menu function to be executed.

Returns: True if menuFunctionName found.

Implements UI::MiloPanel.

void EqnPanel::doMouse ( const MouseEvent & mouse )

virtual

Handle mouse event for panel

Implements UI::MiloPanel.

bool EqnPanel::emit_key	(	EqnPanel &	panel,
		const KeyEvent &	key
	)

staticprivate

Static function to emit a key event to a panel.

Parameters

panel	EqnPanel to handle key event.
key	Key event.

Returns: True if key event was handled.

void EqnPanel::getCursorOrig	(	int &	x,
		int &	y
	)

virtual

Get coordinates of current active input.

Parameters

[out]	x	Horizontal origin of curosr.
[out]	y	Vertical origin cursor.

Implements UI::MiloPanel.

Equation& UI::EqnPanel::getEqn ( )

inline

Get reference to current equation.

Returns: Reference to current equation.

void EqnPanel::loadState ( std::istream & is )

virtual

Load panel from XML stream.

Parameters

filename Name of file

Implements UI::MiloPanel.

Equation& UI::EqnPanel::newEqn ( std::string eq )

inline

New equation from string such as 'a+b/c'

Parameters

eq	String containing equation to be created.

Returns: Refrence to new equation

Equation& UI::EqnPanel::newEqn ( std::istream & is )

inline

New equation from xml stream.

Parameters

is	Input stream containing xml.

Returns: Refrence to new equation

void EqnPanel::popUndo ( )

virtual

Restore state of panel on top of undo stack.

Implements UI::MiloPanel.

void EqnPanel::pushUndo ( )

virtual

Push state of panel to undo stack.

Implements UI::MiloPanel.

void EqnPanel::saveState ( std::ostream & fs )

virtual

Save panel to XML stream

Parameters

Implements UI::MiloPanel.

void UI::EqnPanel::set_refresh ( bool refresh )

inline

Set drawing refresh state for panel

Parameters

refresh If true, refresh on every draw

Member Data Documentation

const unordered_map< KeyEvent, EqnPanel::key_handler > EqnPanel::key_event_map

staticprivate

Map of events to functions that handle key events.

const unordered_map< string, EqnPanel::menu_handler > EqnPanel::menu_map

staticprivate

Initial value:

= {
    { string("simplify"),  [](EqnPanel& p) { return p.getEqn().simplify(); } },
    { string("normalize"), [](EqnPanel& p) { p.getEqn().normalize(); return true; } },
}

Map of names to functions that handle menu calls.

const unordered_map< MouseEvent, EqnPanel::mouse_handler > EqnPanel::mouse_event_map

staticprivate

Initial value:

= {
    { MouseEvent(Mouse::RELEASED, 1), [](EqnPanel& p, const MouseEvent& m) { return p.do_mouse_released(m); } },
    { MouseEvent(Mouse::PRESSED,  1), [](EqnPanel& p, const MouseEvent& m) { return p.do_mouse_pressed(m); } },
    { MouseEvent(Mouse::CLICKED,  1), [](EqnPanel& p, const MouseEvent& m) { return p.do_mouse_clicked(m); } },
    { MouseEvent(Mouse::DOUBLE,   1), [](EqnPanel& p, const MouseEvent& m) { return p.do_mouse_double(m); } },
    { MouseEvent(Mouse::POSITION, 0), [](EqnPanel& p, const MouseEvent& m) { return p.do_mouse_position(m); } }
}

Map of events to functions that handle mouse events.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
